group: PSU1500
heating
cooling
industry
commercial building
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
15 (DN15) LF
dimensions
167x68x104
weight
0.83 kg
packaging
bag (1 pce)
gtin
05022050688750
code
size
15 (DN15) SF
dimensions
167x68x104
weight
0.83 kg
packaging
bag (1 pce)
gtin
05022050688781
code
size
15 (DN15) HF
dimensions
167x68x104
weight
0.83 kg
packaging
bag (1 pce)
gtin
05022050688811
code
size
22 (DN20) SF
dimensions
189x81x122
weight
1.32 kg
packaging
bag (1 pce)
gtin
05022050688842
code
size
22 (DN20) HF
dimensions
189x81x122
weight
1.32 kg
packaging
bag (1 pce)
gtin
05022050688873
code
size
28 (DN25) SF
dimensions
220x108x132
weight
1.95 kg
packaging
bag (1 pce)
gtin
05022050688934
code
size
28 (DN25) HF
dimensions
220x108x132
weight
1.95 kg
packaging
bag (1 pce)
gtin
05022050688965
code
size
35 (DN32) HF
dimensions
243x124x156
weight
2.62 kg
packaging
bag (1 pce)
gtin
05022050688996
code
size
42 (DN40) SF
dimensions
289x162x195
weight
4.32 kg
packaging
bag (1 pce)
gtin
05022050689023
code
size
54 (DN50) HF
dimensions
315x162x195
weight
5.22 kg
packaging
bag (1 pce)
gtin
05022050689054
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
slw2
slw0
H
V
U
a
code
size
15 (DN15) LF
d1
15.0
DN1
DN15
l1
67
z1
46
d2
15.0
DN2
DN15
l2
100
z2
80
slw2
30
slw0
28
H
69
V
45
U
68
a
60
code
size
15 (DN15) SF
d1
15.0
DN1
DN15
l1
67
z1
46
d2
15.0
DN2
DN15
l2
100
z2
80
slw2
30
slw0
28
H
69
V
45
U
68
a
60
code
size
15 (DN15) HF
d1
15.0
DN1
DN15
l1
67
z1
46
d2
15.0
DN2
DN15
l2
100
z2
80
slw2
30
slw0
28
H
69
V
45
U
68
a
60
code
size
22 (DN20) SF
d1
22.0
DN1
DN20
l1
76
z1
56
d2
22.0
DN2
DN20
l2
119
z2
99
slw2
36
slw0
34
H
78
V
57
U
81
a
60
code
size
22 (DN20) HF
d1
22.0
DN1
DN20
l1
76
z1
56
d2
22.0
DN2
DN20
l2
119
z2
99
slw2
36
slw0
34
H
78
V
57
U
81
a
60
code
size
28 (DN25) SF
d1
28.0
DN1
DN25
l1
86
z1
63
d2
28.0
DN2
DN25
l2
134
z2
111
slw2
46
slw0
41
H
89
V
65
U
108
a
60
code
size
28 (DN25) HF
d1
28.0
DN1
DN25
l1
86
z1
63
d2
28.0
DN2
DN25
l2
134
z2
111
slw2
46
slw0
41
H
89
V
65
U
108
a
60
code
size
35 (DN32) HF
d1
35.0
DN1
DN32
l1
98
z1
72
d2
35.0
DN2
DN32
l2
145
z2
119
slw2
52
slw0
50
H
102
V
77
U
124
a
60
code
size
42 (DN40) SF
d1
42.0
DN1
DN40
l1
114
z1
84
d2
42.0
DN2
DN40
l2
175
z2
146
slw2
58
slw0
57
H
129
V
107
U
162
a
60
code
size
54 (DN50) HF
d1
54.0
DN1
DN50
l1
129
z1
94
d2
54.0
DN2
DN50
l2
186
z2
152
slw2
75
slw0
70
H
128
V
106
U
162
a
60
item

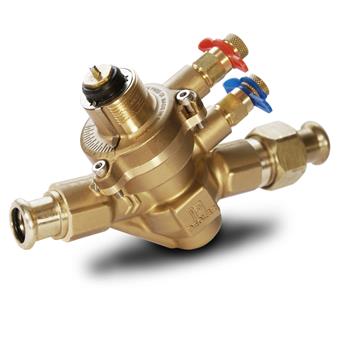

VSH XPress ProFlow dynamic balancing valve PICV with union (2 x press)
item number with gtin
PSU1500
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
5.22 kg
dimensions
315x162x195
color
brass
materials
brass (CW511L (lead-free), CuZn36Pb-C (CC7770S))
finishing
none
shape
straight, 60º
connection type
press
pressure rating (PN)
PN 25
sealing
EPDM
max operating pressure liquid
25 bar
min. medium temperature
-10 °C
max medium temperature
95 °C
peak medium temperature
95 °C
product group
valves (dynamic balancing valves)
ETIM class
EC011463 Regulating valvebrand
VSH
series
Xpress ProFlow dynamic
product type
PSU1500
UNSPS
40141609
label
value
label
etim-class
label
Housing material
value
Brass
label
Surface protection
value
Untreated
label
Connection 1
value
Press sleeve
label
With coupling connection 1
value
Yes
label
Connection 2
value
Press sleeve
label
With coupling connection 2
value
Yes
label
Article compression class
value
PN 25
label
Flange compression class
value
PN 25
label
Suitable for tap water
value
No
label
Suitable for hot tap water
value
No
label
Suitable for central heating water
value
Yes
label
Max. operating pressure
value
25bar
label
Max. operating pressure (imperial)
value
362.59psi
label
Medium temperature (continuous)
value
-10°C - 95°C
label
Medium temperature (continuous) (imperial)
value
14°F - 203°F
label
Suitable for manual operation
value
No
label
Thermostatic
value
No
label
Hydraulic balance control
value
Dynamic
label
With drain valve
value
No
label
With thermometer
value
No
label
With position indicator
value
No
label
Spindle angle
value
60°
label
Spindle angle (imperial)
value
2.36"
label
With insulation
value
No
code
carbon footprint (A-C) embodied carbon
data source
