group: TP1SDR
non-potable water
heating
potable water
commercial building
no approvals available
code
size
dimensions
weight
packaging
gtin
item

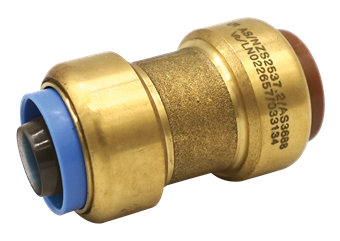

straight coupling transition PEX to SDR
item number with gtin
TP1SDR
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.19 kg
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
straight
connection type
push
sealing
EPDM
max operating pressure liquid
20 bar
min. medium temperature
10 °C
max medium temperature
95 °C
peak medium temperature
95 °C
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connectionsbrand
VSH
series
Tectite Pacific
product type
TP1SDR
UNSPS
40172601
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Main colour fitting
value
Brass
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
Length of connection 2 (imperial)
value
1.3"
label
Medium temperature (continuous)
value
10°C - 95°C
label
Medium temperature (continuous) (imperial)
value
50°F - 203°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
