group: TP61Cu
non-potable water
heating
potable water
commercial building
Watermark
code
size
dimensions
weight
packaging
gtin
item

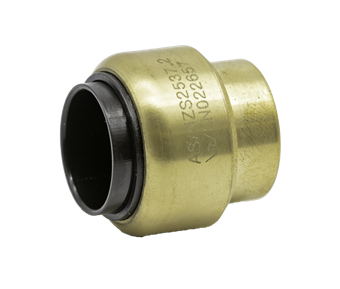

Tectite Pacific stop end (cu)
item number with gtin
TP61Cu
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.04 kg
dimensions
31x31x31 mm
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
End coupling
connection type
push
pressure rating (PN)
PN 20
sealing
EPDM
max operating pressure liquid
20 bar
min. medium temperature
10 °C
max medium temperature
95 °C
peak medium temperature
95 °C
product group
fittings (demountable)
ETIM class
EC003023 Fitting with 1 connectionbrand
VSH
series
Tectite Pacific
product type
TP61CU
UNSPS
40172401
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Brass
label
Medium temperature (continuous)
value
10°C - 95°C
label
Medium temperature (continuous) (imperial)
value
50°F - 203°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
