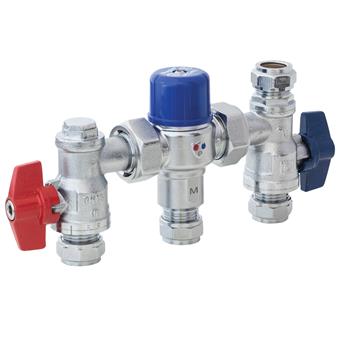

Thermostatic Mixing Valve

code

size

dimensions

weight

packaging

gtin

code

5A1405

size

15

dimensions

160x110x110 mm

weight

0.99 kg

packaging

-

gtin

05022050388438

code

5A1406

size

22

dimensions

160x110x110 mm

weight

1.41 kg

packaging

-

gtin

05022050388452

code

size

d1

l1

z1

d2

l2

z2

d3

l3

z3

slw3

d4

slw0

M

Y

V

code

5A1405

size

15

d1

15.0

l1

106

z1

64

d2

15.0

l2

106

z2

64

d3

15.0

l3

56

z3

38

slw3

26

d4

15.0

slw0

32

M

36

Y

27

V

14

code

5A1406

size

22

d1

22.0

l1

125

z1

71

d2

22.0

l2

125

z2

71

d3

22.0

l3

67

z3

45

slw3

32

d4

22.0

slw0

38

M

36

Y

27

V

14

product info

item

Thermostatic Mixing Valve

item number with gtin

PEG402UAX

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

weight

1.41 kg

dimensions

160x110x110 mm

characteristics

color

chrome

materials

brass (CW602N (DZR))

finishing

chromed

shape

T-piece

connection type

compression

pressure rating (PN)

PN 12.5

sealing

EPDM

technical

max operating pressure liquid

12 bar

min. medium temperature

5 °C

max medium temperature

65 °C

peak medium temperature

85 °C

general

product group

valves (thermostatic valves)

brand

Pegler

series

TMV

product type

PEG402UAX

UNSPS

40141604

image | jpg

PEG402UAX_Thermostatic_Mixing_Valve

diagram | jpg

Diagram

certifications | pdf

Pegler TMV NSF - Reg 4

certifications | pdf

Pegler TMV WRAS

certifications | pdf

TM65 Embodied Carbon Declaration

certifications | pdf

TMV2_NSF2410_0821

code

carbon footprint (A-C) embodied carbon

data source

code

5A1405

carbon footprint (A-C) embodied carbon

4.6kgCO2e

data source

TM65

code

5A1406

carbon footprint (A-C) embodied carbon

7.43kgCO2e

data source

TM65
