VSH Tectite ResiFlow RES1 Valve

code

size

dimensions

weight

packaging

gtin

code

123460693

size

22

dimensions

394x136x157

weight

2.2 kg

packaging

-

gtin

05022050690869

code

123460694

size

28

dimensions

410x136x157

weight

2.22 kg

packaging

-

gtin

05022050690876

code

size

d1

l1

z1

slw1

d2

l2

z2

slw2

M

M1

M2

E

Y

V

U

code

123460693

size

22

d1

22.0

l1

186

z1

158

slw1

40

d2

22.0

l2

208

z2

179

slw2

40

M

28

M1

28

M2

42

E

25

Y

50

V

32

U

64

code

123460694

size

28

d1

28.0

l1

186

z1

152

slw1

40

d2

28.0

l2

224

z2

190

slw2

40

M

28

M1

28

M2

42

E

25

Y

50

V

32

U

64

product info

item

VSH Tectite ResiFlow RES1 Valve

item number with gtin

RES1TEC

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

weight

2.22 kg

dimensions

410x136x157

characteristics

color

brass

materials

brass (CW511L (lead-free))

finishing

none

shape

straight

connection type

push

pressure rating (PN)

PN 16

sealing

EPDM

technical

min. medium temperature

-10 °C

max medium temperature

80 °C

peak medium temperature

80 °C

general

product group

valves (pressure reducing valves)

brand

Pegler

series

ResiFlow Valve

product type

RES1TEC

UNSPS

40141652

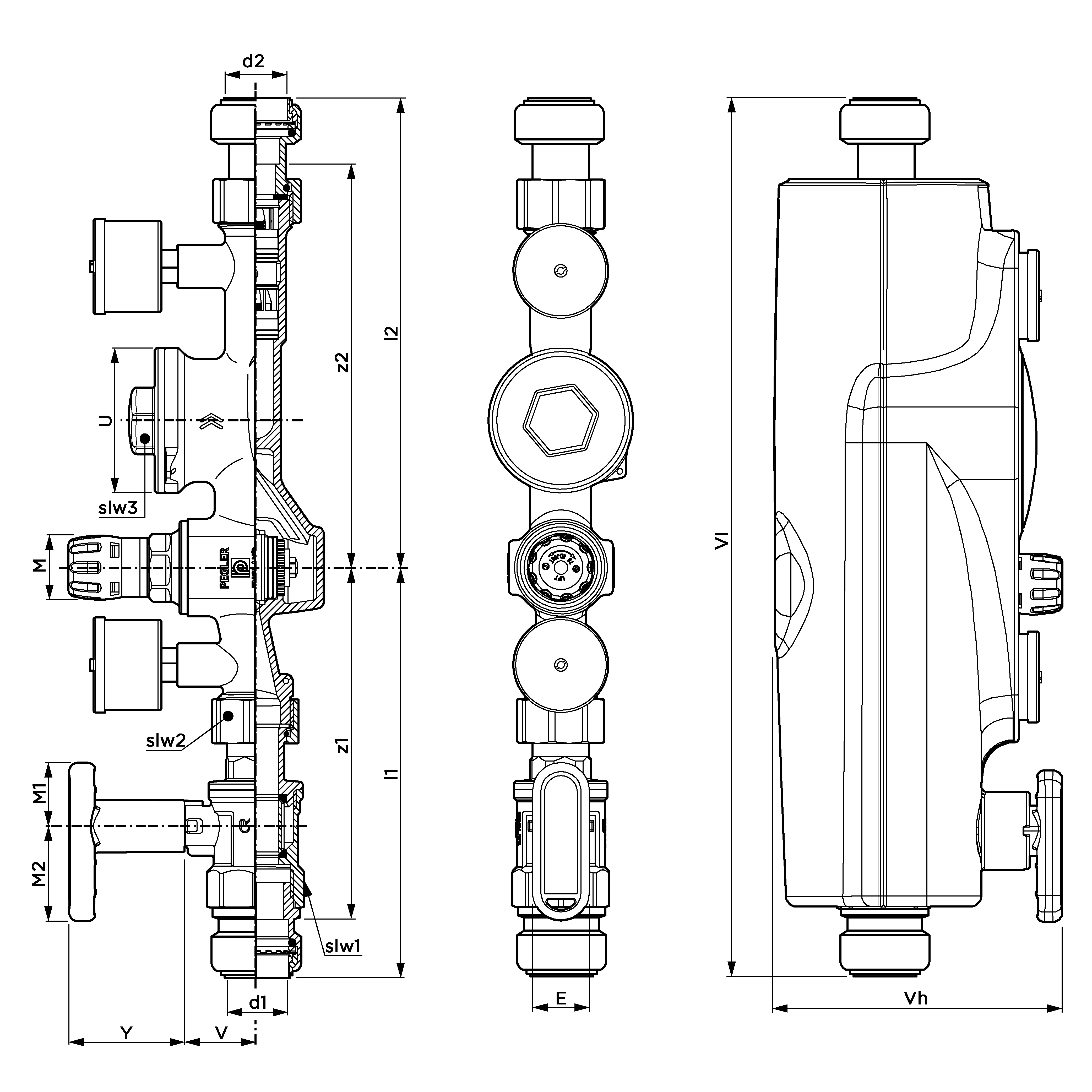

diagram | jpg

Diagram
