group: T3TRVTPFECPDLS
heating
commercial building
BSI Kitemark KM 786727
code
size
dimensions
weight
packaging
gtin
code
size
DN1
l1
z1
DN2
l2
z2
item

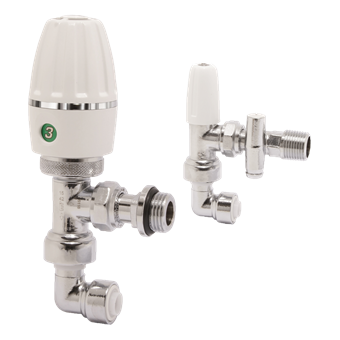

angle pattern trv intpf & drain off lockshield pack with push-fit elbows
item number with gtin
T3TRVTPFECPDLS (05022050500151)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
10xR1/2
weight
0.62 kg
dimensions
71x83x87 mm
color
chrome
materials
brass, plastic (CW617N, ABS)
finishing
polished chrome
shape
Elbow
connection type
compression, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 10
sealing
EPDM
max operating pressure liquid
10 bar
min. medium temperature
4 °C
max medium temperature
120 °C
peak medium temperature
120 °C
product group
radiator valves (TRV)
ETIM class
EC010136 Radiator valvebrand
Pegler
series
Terrier 3
product type
T3TRVTPFECPDLS
UNSPS
40141609
label
value
label
etim-class
value
EC010136 Radiator valvelabel
Housing material
value
Brass
label
Shape
value
Right-angled
label
Operation
value
Manually operated
label
Suitable for single pipe system
value
No
label
Suitable for two pipe system
value
No
label
Length of connection 1
value
66mm
label
Length of connection 1 (imperial)
value
2.6"
label
Working length connection 1
value
8mm
label
Working length connection 1 (imperial)
value
0.31"
label
Length of connection 2
value
82mm
label
Length of connection 2 (imperial)
value
3.23"
label
Working length connection 2
value
50mm
label
Working length connection 2 (imperial)
value
1.97"
label
Height
value
87mm
label
Height (imperial)
value
3.43"
code
carbon footprint (A-C) embodied carbon
data source
