group: TF92

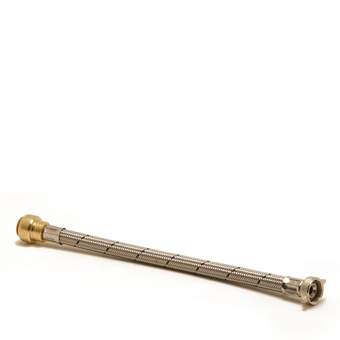

The VSH Tectite Classic TF92 is a flexible tap connector with a push fit and female threaded end. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
commercial building
residential
KIWA
ETA
DVGW Wasser
RISE
code
size
dimensions
weight
packaging
gtin
code
size
15xG1/2"
dimensions
300x25x40 mm
weight
0.15 kg
packaging
bag (1 pce)
gtin
05022050459879
code
size
22xG3/4"
dimensions
395x35x45 mm
weight
0.2 kg
packaging
bag (1 pce)
gtin
05022050459893
item
VSH Tectite Classic flexible hose (push x female thread)
item number with gtin
TF92
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.2 kg
dimensions
395x35x45 mm
color
silver
materials
brass, stainless steel (CW602N (DZR))
finishing
none
shape
straight, reducer
connection type
push, G - female thread gas cylindrical (BSPP)
pressure rating (PN)
PN 16
sealing
EPDM
max operating pressure liquid
16 bar
min. medium temperature
-24 °C
max medium temperature
95 °C
peak medium temperature
95 °C
product group
fittings (demountable)
ETIM class
EC011399 Flexible connecting hose (metal)HS code
74121000
brand
VSH
series
Tectite Classic
product type
TF92
UNSPS
40141734
scip
054b35f0-c9aa-49ba-ba74-e8b35a8de72e
label
value
label
etim-class
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Internal thread
label
Suitable for cooled water
value
Yes
label
Suitable for central heating water
value
Yes
label
Suitable for oil
value
No
label
Max. medium temperature (continuous)
value
95°C
label
Max. medium temperature (continuous) (imperial)
value
203°F
label
With sealing rings/gaskets
value
No
label
Working length
value
label
Working length (imperial)
value
label
DVGW quality mark for water
value
Yes
