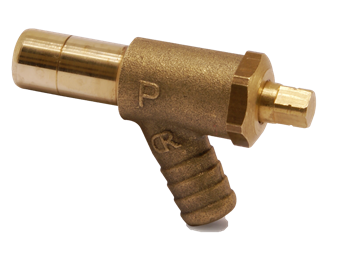

VSH Tectite drain (male x drain)

group: TX526S

The Pegler TX526S is a premium draining tap designed to meet the high standards of modern plumbing systems. Crafted from DZR (Dezincification Resistant) brass, this tap offers exceptional durability and resistance to corrosion, ensuring it remains reliable over long periods of use. The TX526S is versatile and compatible with a wide range of plumbing setups. Its male end design allows for easy insertion into fittings, providing a secure and leak-free connection.

  • Standards Compliance: The Pegler TX526S complies with BS 2879 Type 2 standards
  • Designed for professional heat-free jointing of plain or chrome-plated copper tubes to BS EN 1057
  • Material: Constructed from DZR (Dezincification Resistant) brass
  • Can be used with XPress Copper and Stainless systems
  • Can be used with either Push of Press fittings
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

non-potable water

non-potable water

segments

commercial building

commercial building

approvals

no approvals available

  • assortment
  • dimensions
  • specifications
  • downloads

code

size

dimensions

weight

packaging

gtin

code

35615

size

-

dimensions

20x45x65 mm

weight

0.11 kg

packaging

-

gtin

-

code

65936

size

15xØ15

dimensions

65x20x45 mm

weight

0.11 kg

packaging

-

gtin

05022050659378

code

size

d1

DN1

l1

z1

d2

l2

z2

slw2

a

code

35615

size

-

d1

-

DN1

-

l1

-

z1

-

d2

-

l2

-

z2

-

slw2

-

a

-

code

65936

size

15xØ15

d1

15.0

DN1

DN15

l1

34

z1

8

d2

15.0

l2

36

z2

24

slw2

8

a

55

technical drawing for product

product info

item

VSH Tectite drain (male x drain)

item number with gtin

TX526S

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

weight

0.11 kg

dimensions

65x20x45 mm

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

straight

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (fill and drain valves)

product type

TX526S

image for TX526S

image | png

TX526S

image for Diagram

diagram | jpg

Diagram
