item: 123462174
potable water
heating
cooling
shipbuilding
industry
commercial building
datacenters
no approvals available

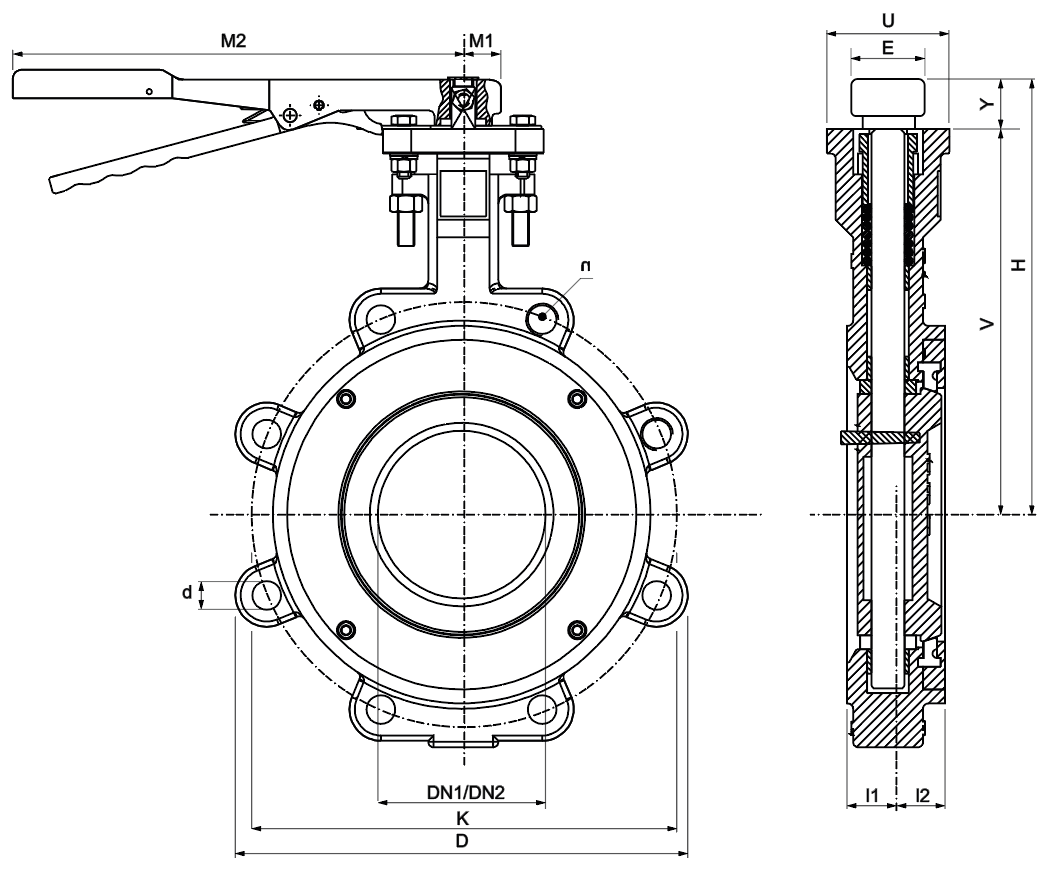

label
value
label
d1
value
60.3
label
DN1
value
DN50
label
l1
value
22
label
d2
value
60.3
label
DN2
value
DN50
label
l2
value
22
label
n2
value
4
label
k2
value
125
label
d2-2
value
18
label
D2
value
165
label
M1
value
19
label
M2
value
266
label
E
value
28
label
H
value
183
label
Y
value
29
label
V
value
154
label
U
value
70
label
D1
value
165
item

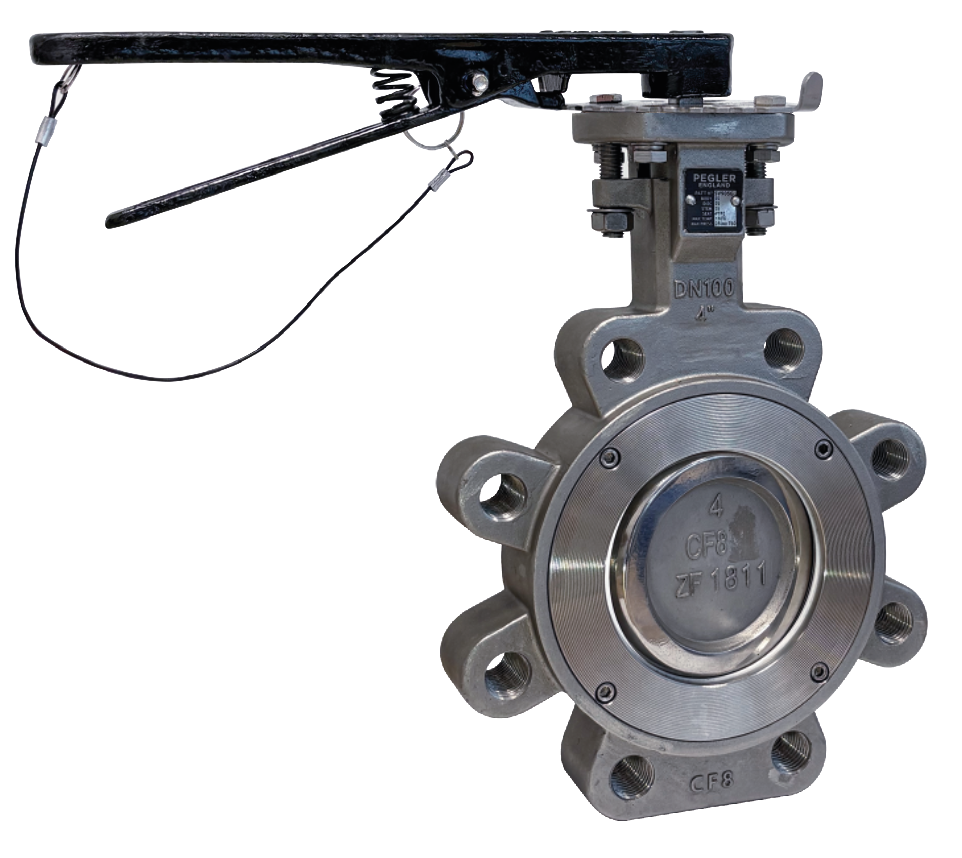

Pegler butterfly valve Stainless Steel high performance lever operated LUG PN16 DN50
item number with gtin
123462174 (05022050742063)
product number with gtin
123462174 (05022050739612)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
SV905HP SV905HP - Pegler butterfly valve Stainless fully lugged HP gear operated (2x flange)size
PN16 DN50
weight
5.4 kg
dimensions
349x70x265
packaging
unpackaged (1 pce)
color
stainless steel
materials
stainless steel (CF8 (1.4308))
finishing
none
shape
straight
connection type
flange, flange
pressure rating (PN)
PN 16
sealing
PTFE
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
150 °C
peak medium temperature
150 °C
product group
valves (PTFE)
ETIM class
EC010910 Butterfly valveHS code
84813091
brand
Pegler
series
Butterfly Valve
product type
SV905HP
UNSPS
40141619
label
value
label
etim-class
value
EC010910 Butterfly valvelabel
Housing material
value
Stainless steel
label
Surface protection
value
Untreated
label
Material valve butterfly
value
Stainless steel
label
Nominal diameter
value
DN 50
label
Standard
value
EN
label
Outer pipe diameter all connections
value
60.3mm
label
Outer pipe diameter all connections (imperial)
value
2.37"
label
Connections
value
Flange (expired)
label
Article pressure rating
value
PN 16
label
Flange pressure rating
value
PN 16
label
Sealing
value
Polytetrafluoroethylene (PTFE)
label
Material spindle
value
Stainless steel
label
Length of connection 1
value
21.5mm
label
Length of connection 1 (imperial)
value
0.85"
label
Length of connection 2
value
21.5mm
label
Length of connection 2 (imperial)
value
0.85"
label
Height operating element
value
29mm
label
Height operating element (imperial)
value
1.14"
label
Length operating element
value
266mm
label
Length operating element (imperial)
value
10.47"
label
Angle of the valve
value
label
Medium temperature (continuous)
value
-10°C - 150°C
label
Medium temperature (continuous) (imperial)
value
14°F - 302°F
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
VdS quality mark
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
Gastec QA - AR 214 (H2)
value
No
